Table Top Bagger/Sealer

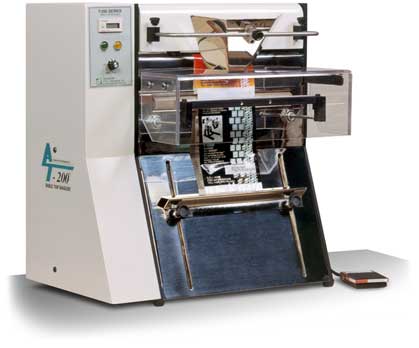

Model T-200 Tabletop Bagger/Sealer

Throw away your hand sealer, and double your production or more! With our T-200 Tabletop Bagger-Sealer, you will increase production, simplify the bagging operation and decrease packaging costs.

Package fasteners, electronic components, literature, manuals, various foods, jewelry, craft items and more! By using our Pre-Opened Bags on Rolls, instead of loose bags, simply pull the bag into the loading and sealing position, and the bag blows open! Now insert the product and press a foot-switch or guard-switch (guard tilts downward cycling the bagger) to seal the bag. It's just that simple, and quick!

Dwell time and cool time controls.
Heat/dwell & cool LED's indicate cycle operation of sealing mechanism.
Patented Teflon ShieldTM increases Teflon life by 10 times, because the Teflon is only in contact with the heating element
while sealing, the element stays clean and delivers a long service life.
Tilting guard (Guard-switch) assembly cycle machine at the loading area, maximizing output and minimizing operator fatigue.
Patented anti-jamming method ensures no attempts are made to seal obstructions in the seal area, especially fingers!
Universal funnel attachment is standard allowing the operator to slide product directly into the bag.
Adjustable volume air knife filters a continuous stream of clean air with a 4-micron filter.
Adjustable load shelf supports the bag and also assists the operator to position the bag at the proper seal point.
Quick roll change assembly and easy threading allows operators to replace the roll of bags in less than a minute.

Specifications

Description	T-200
Bag feed method	Manual registration
Seal mechanism	Solid heater bar
Cycle operation	Semi-automatic
Bag size range	2" x 2" up to 11" x 16"
Film thickness	1 to 5 mil
Estimated speed	5 to 15 bags/min.
Guard-switch feature	Standard
Anti-Jam seal bar	Standard Safety Feature
Electric	110V/60Hz
Air	.5cfm/40psi
Dimensions	19-1/2" x 16" x 21-1/2"
Weight	50 lbs.

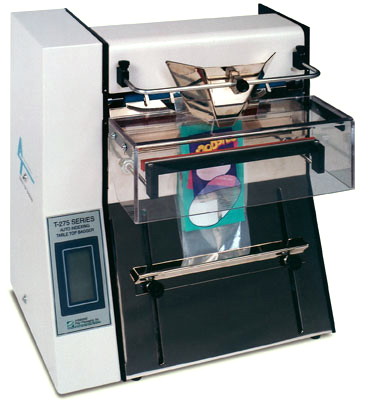

Model T-275 Automatic Tabletop Bagger

The T-275 Automatic Tabletop Bagger offers increased packaging speed and further automation. The T-275 Automatic Tabletop Bagger automatically and quickly feeds the bag into the loading/sealing position and blows it open making the bag ready to accept the product. So just insert the product and press the guard-switch or foot switch to seal the bag and feed another into position.

Digital controls indicate Auto (Paced Rate) or Manual (Foot-switch or Guard-Switch) cycle operation. Total Cycle Counter with Reset, Seal Time, Fill Time Delay and Seal Point. Set points are saved and automatically recalled when power is shut off.

Solid, constant heat seal bar with temperature adjusted through and easy to use temperature controller.
Patented Teflon Shield increases Teflon life tenfold. Because the Teflon only contacts the heater bar while sealing, the Teflon remains clean with less opportunity to burn.
"Guard Switch" Operation - Cycles the machine at the loading area to minimize operator movements, decrease operator fatigue and increase output.
Patented anti-jamming method detects seal obstructions and reverses seal bar.
Universal adjustable funnel included.
Air knife quickly opens bag with filtered air.
Adjustable support provided for heavier products.
Easy threading - pull the bags off the roll and through the pinch rollers with no rollers to thread through.

Specifications

Description	T-275
Bag feed method	Automatic registration
Seal mechanism	Solid heater bar, continuous heat
Cycle operation	Automatic
Bag size range	2" x 2" up to 11" x 16"
Film thickness	1 to 5 mil
Estimated speed	10 to 25 bag/min.
Guard-switch feature	Standard
Auto/Paced rate operation	Standard
Anti-Jam seal bar	Standard Safety Feature

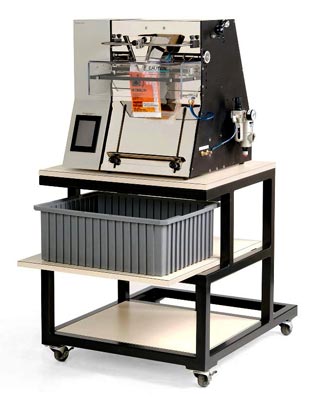

Model T-300 Automatic Tabletop Bagger

Our smallest, fully automatic bagger offers increased production capabilities. We pack a lot of features into this bagger, including touch-screen operation, “pop-up” messaging, job save/recall and interface to auto infeed equipment.

Automatic indexing, sealing, tear-off or continuous strips of bags are possible.

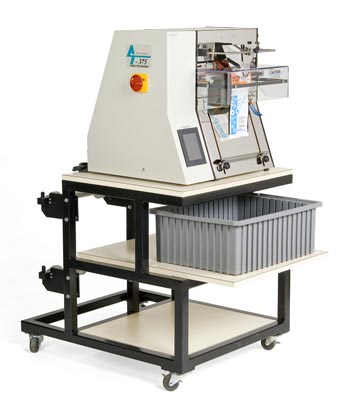

Model T-375
Automatic Tabletop Bagger/Printer “Next Bag Out”

In addition to all the features of the T-300, the T-375 incorporates a thermal transfer printer for “next-bag-out” printing. This patented feature allows for printing, just prior to loading which guarantees accurate labeling. You can now package quantities of just one part number!

Four color screen with pop-up windows
Diagnostic and troubleshooting screens
Preset and totalizing bag counter
Automatic “paced” operation with fill time delay timer
Universal, adjustable parts chute
Adjustable support shelf
Blower with flow controls
One year limited parts warranty
