Fully Automated Systems

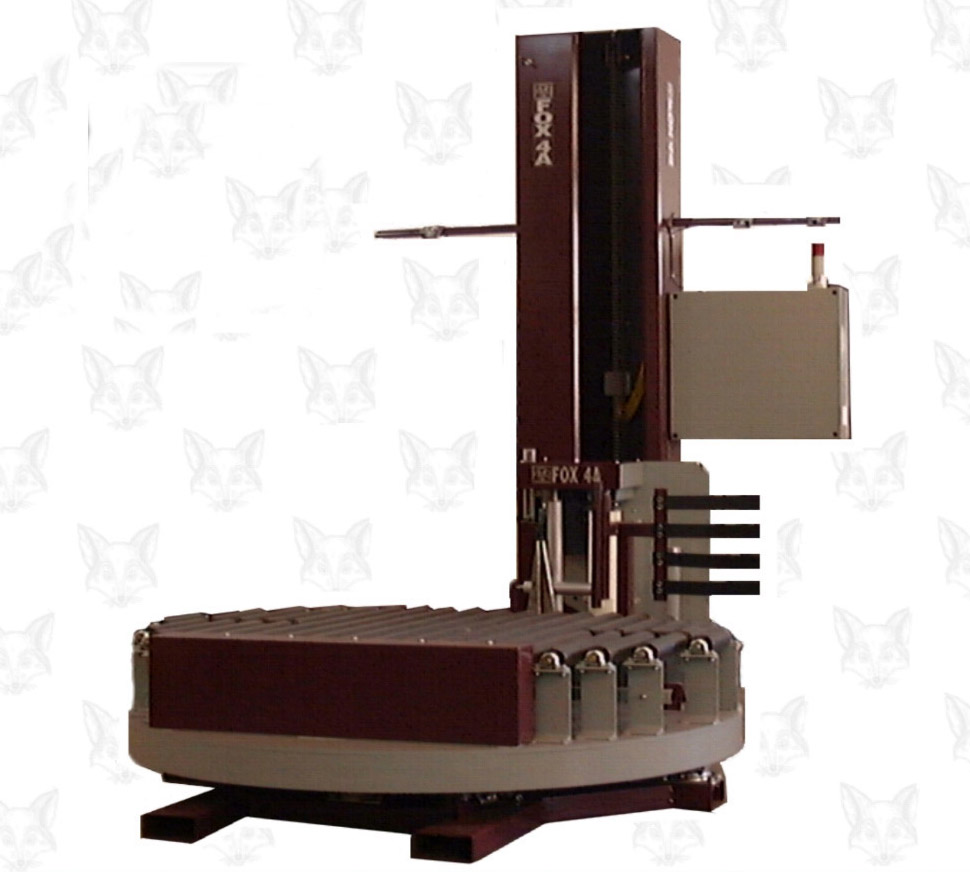

FOX 4A
  • Economy model for standard production
  • Automatic clamp, cut and tail wipe down system
  • FOX “Linear” 20 inch powered pre-stretch film delivery system

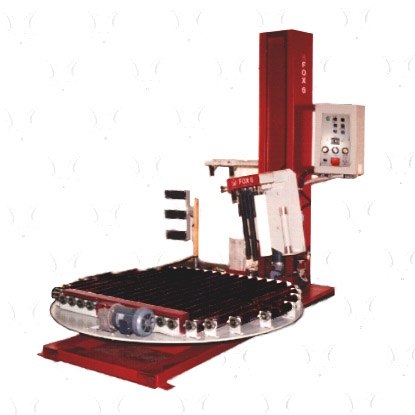

FOX 6
  • Process conveyor on turntable (all rollers driven)
  • Integration directly into manufacturing process
  • Automatic clamp, cut and tail wipe down system
  • Programmable Logic Control (PLC) system
  • User friendly controls
  • Motorized pre-stretch carriage (50-300%)
  • Many options available to suit your individual needs
  • Fox can provide the conveyor system or we can help integrate it with your existing processing line

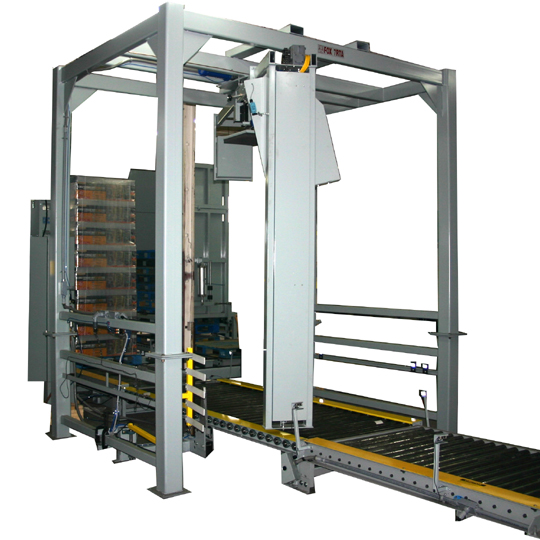

FOX 7RTA w/ Pallet Dispenser
  • Fully Inline Automatic Rotary Arm Pallet Wrapper
  • Available to accommodate most sizes of product
  • Features film clamp cut system
  • Automatic photo eye sequencing of product (requires no operator)
  • Powered Roller Conveyors
  • Pop-Up System in Wrap Zone

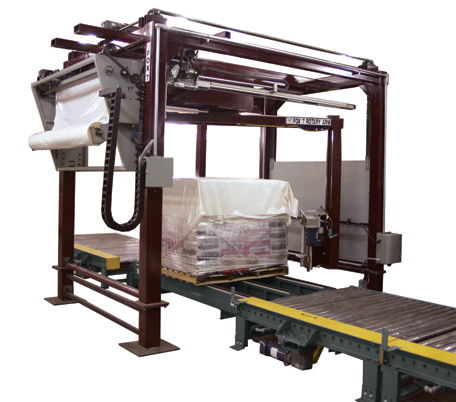

Fox 7RTA w/ Top Sheet Dispenser
  • Fully Automatic w/ Top Sheet Dispenser
  • Roping Bar Carriage
  • "Smart Tuck" Film Clamp System

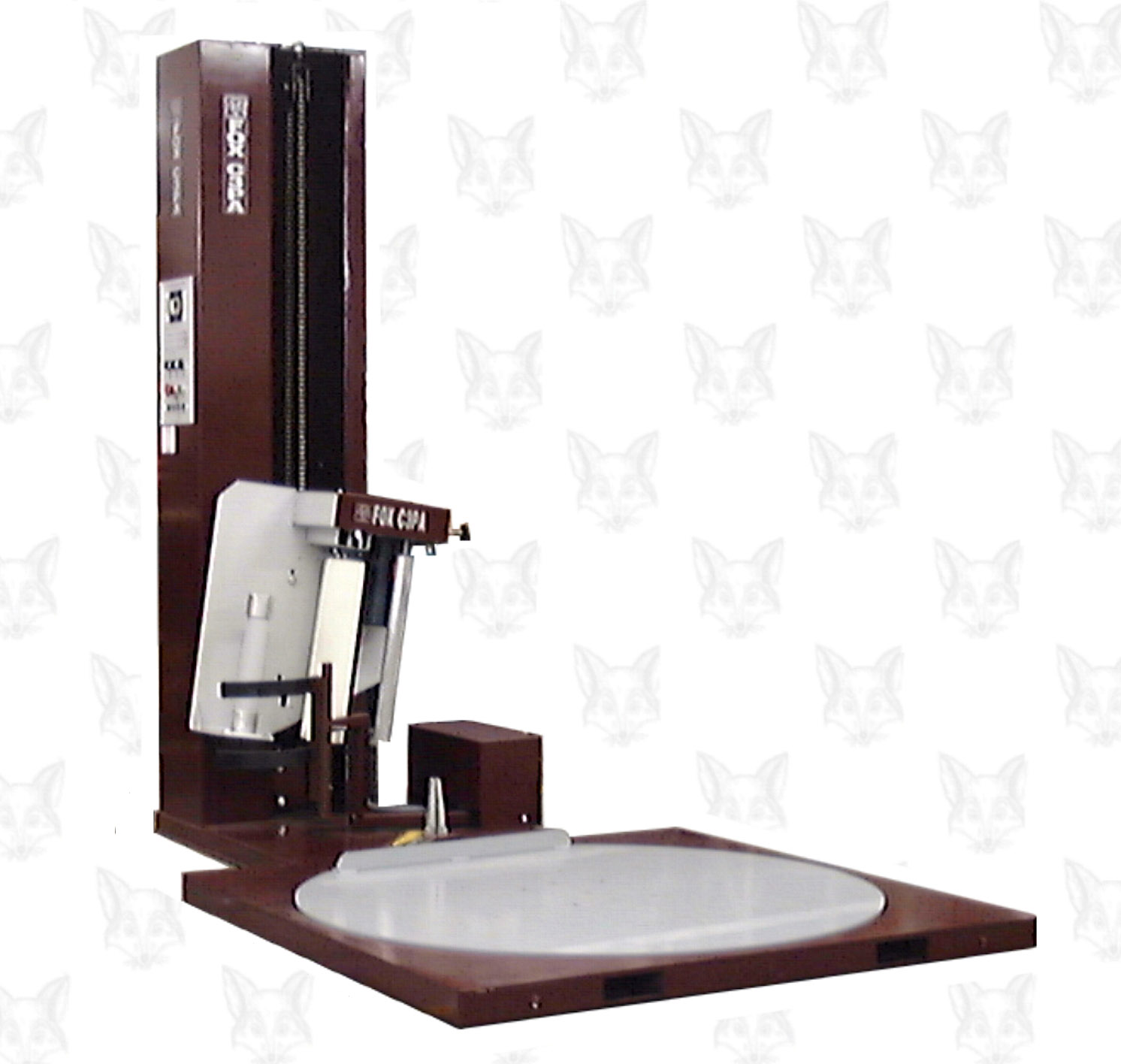

FOX C3PA
  • Clamps/Cuts & Wipes: (Pneumatic operated)
  • Fox unique cam operated film clamp assembly on FOX C3PA
  • FOX “Linear?20 inch powered pre-stretch film delivery system
  • Suggested Maximum Load Size: 48”L x 54”W x 90?High
  • 3 1/8?from floor to top of turntable
  • Weight Capacity: 4,000 lbs

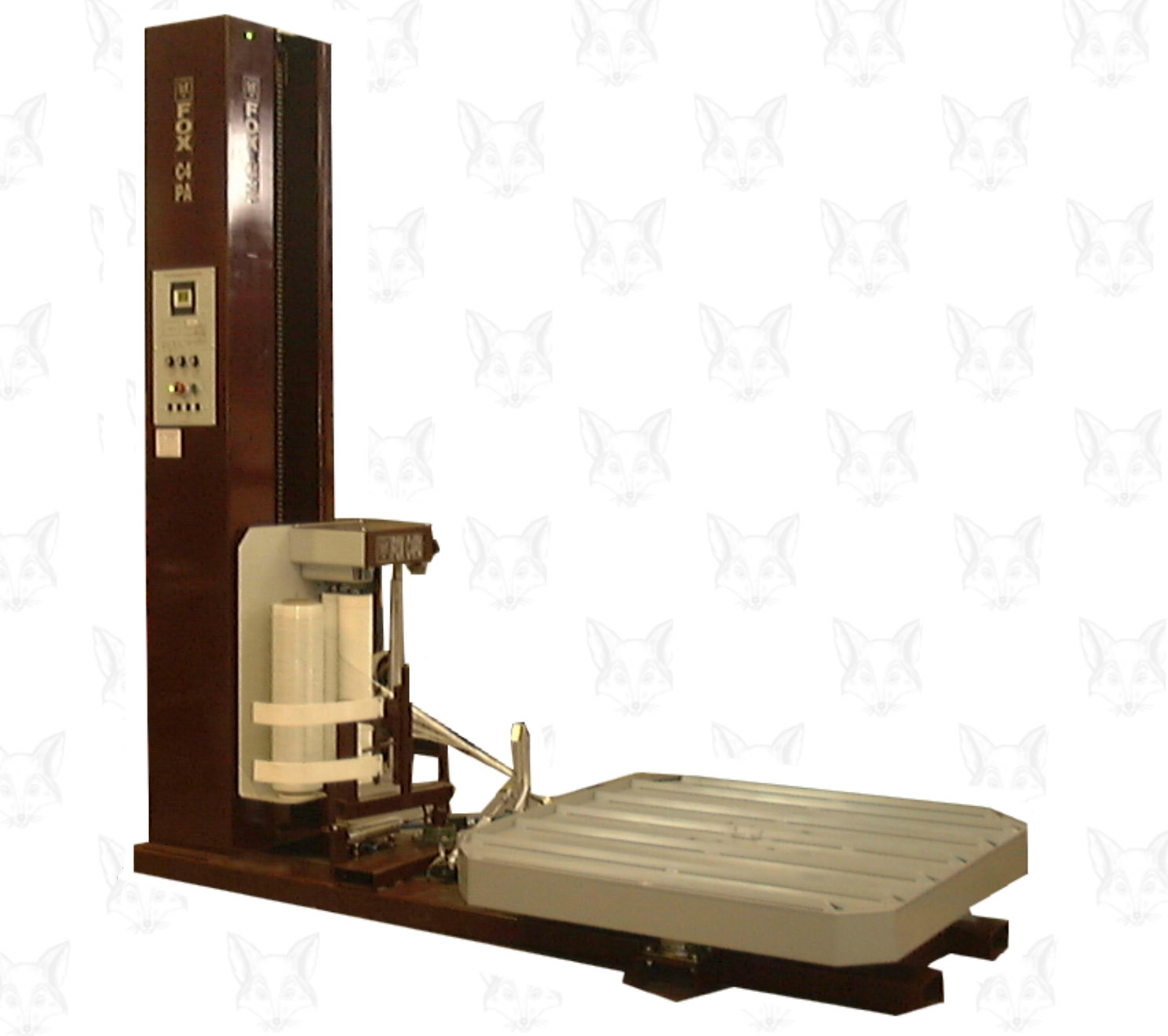

FOX C4PA
  • Automatic clamp, film wipe down and film cutter system
  • FOX 20 inch "Linear" powered prestretch film carriage
  • Suggested Maximum Load Size: 48”L x 54”W x 82?High
  • Weight Capacity: 4000 lbs

Click here for Video Demonstration
Click here for Product Specifications Sheet
