Texwrap is a manufacturer of quality, fully automated shrink wrap equipment including servo wrappers, high speed wrappers, horizontal side sealers, L-sealers, intermittent motion side sealers, tunnels and conveyors. Texwrap are the innovators of MOTION TRIM™ and several other patents which make their equipment unique in the industry and a leader in shrink wrapping technology. Texwrap also offer integration services!

The Texwrap mission is to provide customers with the latest technological advances while maintaining their commitment to a user-friendly machine that is efficient and easy to maintain. The flexibility, easy changeover and low maintenance features of Texwrap systems make Texwrap machinery ideal in almost every application where shrink wrapping is the preferred packaging method. Texwrap by working closely with MacKenzie and Partners along with end users have built a reputation for quality and responsiveness to customer needs.

If you have a shrink wrapping application, or would like to improve speed and efficiencies on an existing application, please call us at 1-800-267-4706

Thank you for your interest in Texwrap.

Brand New from Texwrap!

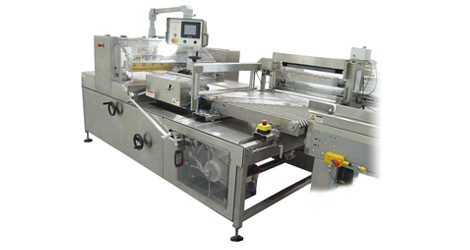

New 205CR - High Speed Side Seal/ Orbital Cross Seal Wrapper

Washington, MO - June 18, 2007

Texwrap has designed a high speed side seal with a revolutionary orbital cross seal head. The 205CR is a corrosion resistant machine ideal for bakery applications with a quick disconnect removable washdown infeed conveyor and stainless steel construction. A servo driven 5 axis design reduces mechanical wear and tear on the machine and minimizes maintenance while providing packaging speeds up to 250 per minute.

Other standard features include a 5" x 24" cross seal jaw opening, film capacity of 54"SW (27"CF), centerline design, touch screen set up helper with recipe memory, automatic product placement and automatic recovery.

For additional information on the 205CR please scroll down the page.

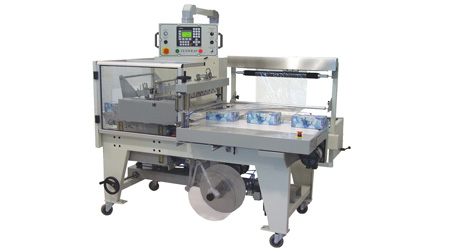

The Texwrap Model 2219 and 3322 Automatic L-bar Sealer

The Texwrap Model 2219 and 3322 are sophisticated Automatic
L-Sealers built for the discriminating buyer who values quality and performance as the utmost criteria. These machines are simple to operate, maintain and offer a wide array of options. These are truly custom packaging machines capable of running many differing sized products at sensible speeds to 45 packages per minute. Call or e-mail for additional information on these inline workhorses.

Standard Features:

NEW! Improved production rates
NEW! 240 Volt AC power
NEW! Inverter duty AC motors for maximum reliability
NEW! Swing arm control panel for easy operator access
NEW! Low profile "lay-on" cradle with power film unwind
NEW! Enhanced guarding now standard
NEW! New "Smooth-mate" contoured exit conveyor for optimum transfer of products
NEW! Multi-packing feature creates single lane unitizing into one package
Fully automatic product indexing and package length adjustment by either horizontal or vertical electric eye can accommodate most package configurations
Thermostatically controlled hot knife seal system provides efficient long term operation
Easy to operate package height and width adjustments
Lay-on film cradle with power film unwind
Self-contained film scrap wind-up system with adjustable tension control
Unique film feed system allows wrapping of non-rigid products
Adjustable leveling legs with casters
Pin perforator system for air evacuation
Variable speed belts (20-95 FMP)
Solid Steel construction with powder coated finish
MOTION TRIM™ technology to increase cycle rate
Automatic dwell time compensator
Front or rear product edge trip
Solid state heater relays
24 VDC controls
Scrap break alarm
Adjustable soft/start with controlled braking
UL electric enclosure
Constant run for loose leaf applications
Durable powder coated finish

New "Smooth-mate" contoured exit conveyor for optimum transfer of products

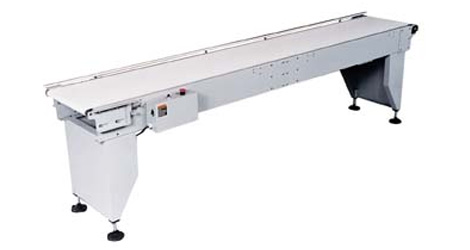

Optional 10’ Infeed Conveyor

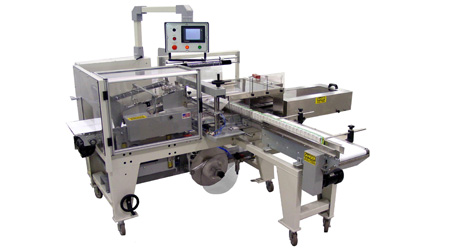

The Texwrap Model 2219 Multi-Packer Automatic L-Bar

The 2219 MP can multi-pack many differing products; from boxes to cans to note pads in a variety of configurations. The products are brought to the machine by a right or left angled infeed, the program is set for the number of units per row and a pusher bar is activated when that number is fulfilled. The pusher can activate as many rows as your requirements demand, the only limitation is the size of the sealing area. This machine is robust and will handle just about anything you may wish to multi pack without the need for chipboard pads or trays.

Standard Features:

Programmable transfer feature ensures transfer into tunnel
Allen Bradley controls
Touch screen swivel mount control & set-up helper for easy operation
Variable speed belts: 20-100 FPM
Touch screen library for instant recall of previous set-ups
Independent conveyors allows relaxed film at Cross Seal
Touchscreen progammable servo pusher
Inverter duty AC motors (no DC)
Closing conveyor for small pack patterns
Knife edge exit conveyor for transferring product into heat tunnel
Fully automatic product indexing & package length adjustment by either horizontal
or vertical electric eye to accomodate most package configurations.
Thermostatically controlled hot knife seal systems
Easy to operate package height and width adjustments
Lay-on film cradle with power film unwind
Self contained film scrap wind-up system with adjustable tension control
Pin perf system for air evacuation
Solid steel construction with powder coated finish
Automatic dwell time compensator
Scrap break alarm
Adjustable soft/start with controlled braking

MODEL	2219MP
MAXIMUM GRID SIZE	15" x 15"
FILM WIDTH	MAX. CF WIDTH 28", MINIMUM OF 6"
ELECTRICAL	220 VOLTS AC, 20 AMPS
AIR REQUIREMENTS	5 CFM @ 80 PSI
CONVEYOR HEIGHT	ADJUSTABLE FROM 29-1/2" TO 35-1/2"H
MAXIMUM FILM SPEED	20 - 100 FEET PER MINUTE
MACHINE CONTROLS	ALLEN BRADLEY
CONTROL PANEL	SWIVEL TOUCH SCREEN

Multipacking Conveyor
For staging of multiple products, the MPFC conveyor features UHMW decking with adjustable side guides.

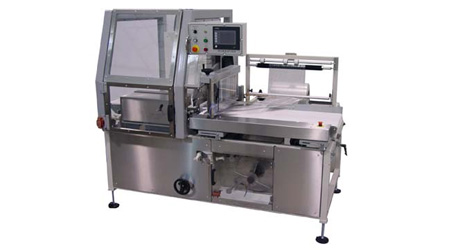

The Texwrap Model 1810 Two Belt Side Sealer

Watch a video of this machine running.

MODEL	1810EH
CONVEYOR WIDTH	18"
CROSS SEAL WIDTH	21" Endseal width
CROSS SEAL DRIVE	Pneumatic or Servo
MINIMUM PKG. SIZE	4"L X 2"W
FILM WIDTH	28" CF / 54" with optional centerfolder
ELECTRICAL REQUIREMENT	220 V / 1 phase/ 30 amps
AIR REQUIREMENTS	80 PSI, 1CFM
CONVEYOR HEIGHT	Adj. from 32.5" to 37.5"
MAXIMUM FILM SPEED	100 FPM
MACHINE CONTROLS	Allen Bradley
CONTROL PANEL	Touch Screen

STANDARD FEATURES:

Large product size capacity
10" x 18" cross seal jaw opening
Single Axis Servo Drives on Cross Seal (on EH model)
Built in flexibility, run with lug conveyor; autospace mode accepts random fed product
Easy change over "No Tools" set up
Touchscreen with set-up product memory & machine diagnostics
Upstream/Downstream hand shaking, quick connect cable system for additional equipment
Welded tubular construction with powder coated finish
Stainless steel inverting head with air bearing surface
Internal scrap take up with advanced oscillating guide, film break & take up reel alarms
"DRS" (patent pending) low maintenance side seal
Allen Bradley PLC
Allen Bradley servo motor & drive
Inverter duty AC motors
Sensor-less vector AC drives

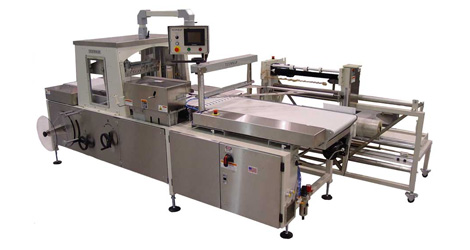

2203 Horizontal Side Sealer

MODEL	2203 HORIZONTAL SIDE SEAL
SEAL SIZE	INFINITE LENGTH x 24"W x 10.5"H
MAXIMUM PACKAGE SIZE	INFINITE LENGTH x 20"W X 10"H
MINIMUM PACKAGE SIZE	4"L x 2"W
FILM WIDTH	MAX. 54" FLAT FILM, 24" CF
ELECTRICAL	240/208 VOLTS, 1 PHASE, 20/23 AMP
AIR REQUIREMENTS	80 PSI
CONVEYOR HEIGHT	ADJUSTABLE FROM 32.5" TO 37.5"H x14"W
MAXIMUM FILM SPEED	100 FEET PER MINUTE
MACHINE DIMENSIONS	132"L x 43"W x 54"H
SHIPPING WEIGHT	2,800 LBS

Standard Features:

10.5" cross seal height opening.
Touchscreen controlled heaters with auto tune
AC Inverter duty motor with sensorless vector AC drives
Handwheel adjustments for the seal jaw opening and seal line height.
Film centerfolder with lay-on cradle and capacity to handle up to 54" wide rolls of single wound film
Exit conveyor speed control for film relaxation
Self contained film scrap wind-up system with automatic speed compensating dancer bar control
Infeed conveyor speed trim to control product spacing.
Autospacing for control of randomly spaced or choke fed products.
MOTION TRIM™ for increased speeds.
Allen Bradley PLC control.
Swivel touchscreen operator interface with step by step product set-up and help screens to explain each function.
Alpha-numeric "save as" for programs, ability to save to, custom product codes.
Diagnostic features on the touchscreen.
Adjustable film inverting head with controlled air bearing surfaces for reduced film drag.
Horizontal and vertical photo eye controlled cross seal system to provide automatic adjustment of bag length.
Pin perforator air evacuation system.
Variable speed control with maximum belt speed of 100 feet per minute.
Set-up scales on all mechanical adjustments.
Dual speed modulation control automatically adjusts machine speed to match production flow (optional photo eye required)
Test mode to simulate product run for estimating purposes
Automatic speed maximizer (automatically brings machine up to top speed for a given set up)
Durable powder coated finish
Enhanced sealing performance for tall packages

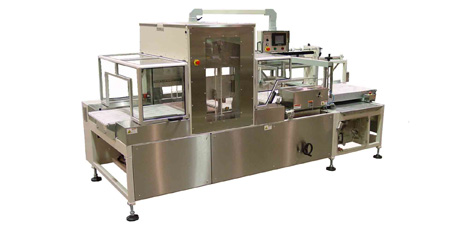

2814SS Servo Side Seal

MODEL	2814SS
CONVEYOR WIDTH	28"
CROSS SEAL WIDTH	34" End Seal Width
CROSS SEAL DRIVE	Dual Axis Servo
MINIMUM PKG SIZE	4"L x 2"W
FILM WIDTH	Max 54" Flat Film, 72" Centerfolded
MAXIMUM FILM SPEED	140 FPM
ELECTRICAL	240/208V, 35/40 AMP, 1 Phase
AIR REQUIREMENTS	80 PSI, 1CFM
CONVEYOR HEIGHT	Adjustable from 32.5" to 37.5"H
MACHINE CONTROLS	Allen Bradley Control Logix
CONTROL PANEL	Easy access swivel mounted with CTC touch screen

Standard Features:

Large product size capacity
14" opening, 28" belt width
34" length cross seal bar
72" single wound or 36" center folded film capacity
Dual axis servo drives on cross seal
Inverter duty AC motors
Motorized cross seal height adjustment
Hinge-up safety doors for easy access
140 Feet per minute belt speed
Independent conveyors allow relaxed film at cross seal
Centerline design with "Film Saver" infeed standard
Easy change over "No Tools" hand wheel with touchscreen confirmation
Swivel Mounted touch screen with set-up product memory & machine diagnostics
Upstream/Downstream hand shaking, feeder controls, and quick connect cable system for additional equipment
Welded tubular construction with powder coat finish
Stainless steel inverting head with air bearing surface
Internal scrap take-up with advanced oscillating guide, film break & take up reel alarms
"DRS" low maintenance side seal
Allen Bradley Control Logix Platform
Very rugged mechanical design for years of 24/7 service

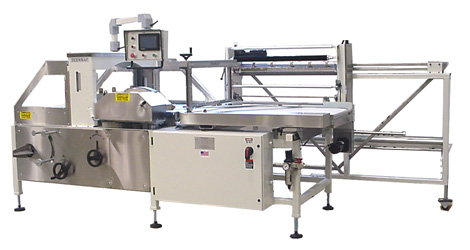

2602 Intermittent Sidesealer

MODEL	2602 INTERMITTENT SIDE SEAL
SEAL SIZE	INFINITE LENGTH x 30" W x 11.5"H
MAXIMUM PACKAGE SIZE	INFINITE LENGTH x 24"W X 11"H
MINIMUM PACKAGE SIZE	4"L x 2"W
FILM WIDTH	MAX. 72" FLAT FILM, 36" CF
ELECTRICAL	240 VOLTS, 1 PHASE
AIR REQUIREMENTS	80 PSI
CONVEYOR HEIGHT	ADJUSTABLE FROM 34" TO 38"H
MAXIMUM FILM SPEED	70 FEET PER MINUTE
MACHINE DIMENSIONS	123"L x 56"W x 62"H
SHIPPING WEIGHT	2,720 LBS

Standard Features:

Longitudinal seal on the side of package with thermostatically controlled seal system
30" "hot knife" cross seal with precision temperature control
24" infeed and exit conveyor.
11" cross seal jaw opening
Automatic autospace tuning feature adjusts machine to match upstream production
Dual speed modulation for upstream batch production
Autospace multi-pak ability
Handwheel adjustments for seal jaw opening and seal line height
Film centerfolder with lay-on film cradle and capacity to handle up to 72" wide rolls of single wound film
Self contained film scrap wind-up
Horizontal and vertical photo eye controlled cross seal system to provide automatic adjustment for bag length
Pin perforator air evacuation system
Variable speed control with maximum belt speed of 70 feet per minute
Independent exit conveyor speed control for film relaxation
Infeed conveyor speed trim to control product spacing
Autospacing for control of randomly spaced or choke fed products
Allen Bradley PLC control with EEprom
Swivel touchscreen operator interface with step by step product set up.
Machine set ups can be saved to user defined alphanumeric product codes.
Adjustable film inverting head with controlled air bearing surfaces for reduced film drag.
Set up scales on all mechanical adjustments
Durable powder coated finish

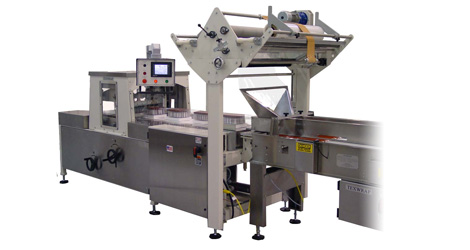

1606 Bottom Lap Sealer

MODEL	1606 Bottom Lap Sealer
SEAL SIZE	16"W SEAL BAR
MAXIMUM PACKAGE SIZE	INFINITE LENGTH x 15"W X 5.5"H
MINIMUM PACKAGE SIZE	4"L x 3"W
FILM WIDTH	MAX. 32" FLAT FILM
ELECTRICAL	240 VOLTS, 1 PHASE, 18.5 AMP
AIR REQUIREMENTS	80 PSI, 12 CFM,
CONVEYOR HEIGHT	ADJUSTABLE FROM 34" TO 38"H
MAXIMUM FILM SPEED	120 FEET PER MINUTE
MACHINE DIMENSIONS	112"L x 48"W x 71"H
MACHINE WEIGHT	2,700 LBS.

Standard Features:

Multiple seal options: static, drag wire, band seal
Various former styles available
32” flat film, PVC, Poly, Polyolefin
Dual roll film holder
Touch screen controlled heaters with auto tune
Hand wheel adjustments for the seal jaw opening and seal line height
Infeed and exit conveyor speed trim to control product spacing
MOTION TRIM™ for increased speeds
Allen Bradley PLC control
Swivel touch screen operator interface with step-by-step product set-up help screens to explain each function.
Alphanumeric “save as” for programs, ability to save to, custom product codes.
Diagnostic features on the touch screen
Pin perforator air evacuation system with brush back-up roller
Variable speed control with maximum belt speed of 120 feet per minute
Set-up scales on all mechanical adjustments
Dual speed modulation control automatically adjusts machine speed to match production flow(optional photo eye required)
Test mode to simulate product run for estimating purposes
Durable powder coated finish
Hot knife cross seal
Powered film unwind
Ambidextrous design

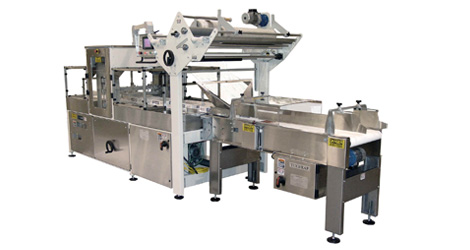

1809LS Servo Driven with "Generation 3" Design

MODEL	1809LS Lap Seal
JAW OPENING	9"H
CONVEYOR WIDTH	18"
MAXIMUM FILM SPEED	140 FPM
MINIMUM PKG. SIZE	4"L x 3"W
ELECTRICAL REQUIREMENT	240 V / 1 phase/ 30 amps
CONVEYOR HEIGHT	adj. 34" - 38"H
AIR REQUIREMENTS	80 PSI, 1CFM
FILM WIDTH	Max 44" flat film

This machine satisfies the most demanding industrial packaging applications. Featuring “generation 3” design, the latest machine design technology combines servo technology, PLC control and machine mechanics into one optimized unit. The result is a machine with minimal moving parts, minimal maintenance requirements and maximized performance. All conveyors are either servo driven or have AC inverter duty motors powered by AC vector drives.

The 1809 series are centerline machines, making them ideal for fixed production lines. The machine has many built in features, such as a cross seal that is photo-eye activated or can follow an upstream lugged conveyor similar to older mechanical machines, upstream feeder control, and many more integration options that are built into the machine as standard, making the 1809 easy to integrate into almost any application. The 1809 film plow system minimizes film usage, saving you money.

There are many side-seal and lap seal options available for the film type required by your application, including side seals with no consumable items like rubber rings, pads, etc. If your application requires production performance, true 24/7 reliability, and flexibility, the 1809 series is the solution.

1809 FEATURES:

Centerline infeed
Two axis servo box motion cross seal
Programmable cross seal pressure
Allen Bradley ControLogix Platform
Touch-screen set-up helper & library
Built in diagnostics, remote diagnostics available
Vector duty AC motors, Vector AC drives
Allen Bradley servo motors & drives
New plug/cable system for easy installation, integration & set-up
Speed modulation to follow upstream production
5 standard upstream feeder control outputs with controls
Production maximizer button (automatically brings machine to top speed for a given set-up)
Autospace feature automatically creates spacing between random spaced products
Sercos fiberoptic system allows 6 additional servo axes in the 1809 controller for custom infeeds, outfeeds, etc.
Swivel touch screen for right or left handed line operation
Password protected touch screen settings to prevent machine tampering.
Dual roll unwind

146 High Speed Wrapper

MODEL	146 High Speed Wrapper
SEAL SIZE	16"W SEAL BAR
MAXIMUM PACKAGE SIZE	INFINITE LENGTH x 14"W X 5.5"H
MINIMUM PACKAGE SIZE	4"L x 2"W
FILM WIDTH	MAX. 44" FLAT FILM
ELECTRICAL	230 VOLTS, 1 PHASE, 30 AMP
AIR REQUIREMENTS	80 PSI
CONVEYOR HEIGHT	ADJUSTABLE FROM 34" TO 38"H x14"W
MAXIMUM FILM SPEED	200 FEET PER MINUTE
MACHINE DIMENSIONS	83"L x 53"W x 73"H
MACHINE WEIGHT	3,300 LBS.

146 Standard Features:

4 types of modular longitudinal seal systems available: static, fin seal, seal & trim, positive lap
Heated seal pad
Fixed or adjustable film formers
Dual roll powered film unwind with quick release film chocks, micrometer adjustment film centering and film position scales.
Allen Bradley PLC
Product setup library to save and recall machine settings
Machine set-ups can be saved to user defined alphanumeric product codes
"Tool-less" set up
Motorized seal height automatically adjusted through touch-screen
Variable speed exit conveyor to relax bridged film at end-seal
Multiple vacuum chambers controlled at touch-screen
User friendly set-up program to aid novice operator
User defined alarm system with audible siren and light tower
Film roll monitor (film low warning, film out automatic stop)
Touchscreen diagnostics for machine troubleshooting
Color touchscreen control
Ambidextrous design allows for left or right hand machine operation
User specified film load side (left or right)
Speed compensating feeder control outputs
Belt speed up to 200 feet per minute and packaging rates to 250 packages per minute
Unique end-seal head design keeps blade & pad vertical through entire range of motion
Durable powder coated finish
Flighted Conveyors.

205CR High Speed Side Seal Wrapper

Corrosion Resistant with Orbital Cross Seal

MODEL	205CR High Speed Wrapper
CONVEYOR WIDTH	20"W
CROSS SEAL WIDTH	24" ENDSEAL WIDTH
CROSS SEAL DRIVE	SINGLE AXIS SERVO
ELECTRICAL	24O/208V, 40 AMP, 3 PHASE, 40/60 HZ
AIR REQUIREMENTS	80 PSI, 2 CFM
CONVEYOR HEIGHT	ADJUSTABLE FROM 32" TO 37"H
MAXIMUM FILM SPEED	200 FEET PER MINUTE
MAXIMUM PKGS PER MIN.	250 PPM (BASED ON CONFIGURATION)
MACHINE CONTROLS	ALLEN BRADLEY CONTROL LOGIX / KINETICS
CONTROL PANEL	EASY ACCESS SWIVEL MOUNTED

Standard Features:

Corrosion Resistant Construction
Wide Product Size Capacity
5" x 24" Cross Seal Jaw Opening (20" maximum product width)
Film capacity: 54" SW or 27" CF
Complete Servo Machine (5 axis)
Independent conveyor control allows relaxed film at cross seal and transitions
Quick Disconnect removable washdown infeed conveyor
Centerline design with "Film Saver" infeed standard
Automatic product placement verification
Built in flexibility, run with lug conveyor; autospace mode accepts random fed product;
chokespacing for high speed lugless product spacing
Swivel Mounted Touchscreen with set-up helper, product recipe memory and machine diagnostics
Upstream/downstream hand shaking, feeder controls, optional quick connect cable system for additional system
Welded stainless steel heavy duty construction
Stainless steel inverting head with air bearing surface
Internal scrap take up with advanced oscillating guide, film break, take up reel alarms and quick release spool
Patented "DRS" low maintenance side seal
Allen Bradley Control Logix Platform
Heated Bottom Seal pad comes standard with machine
Automatic Recovery

FOR SHRINK FILMS PLEASE GO TO BOLLORE

FOR SEMI-AUTOMATIC MACHINES GO TO HEAT SEAL OR DAMARK

MacKenzie and Partners Inc. - Packing Films, Systems and Solutions
